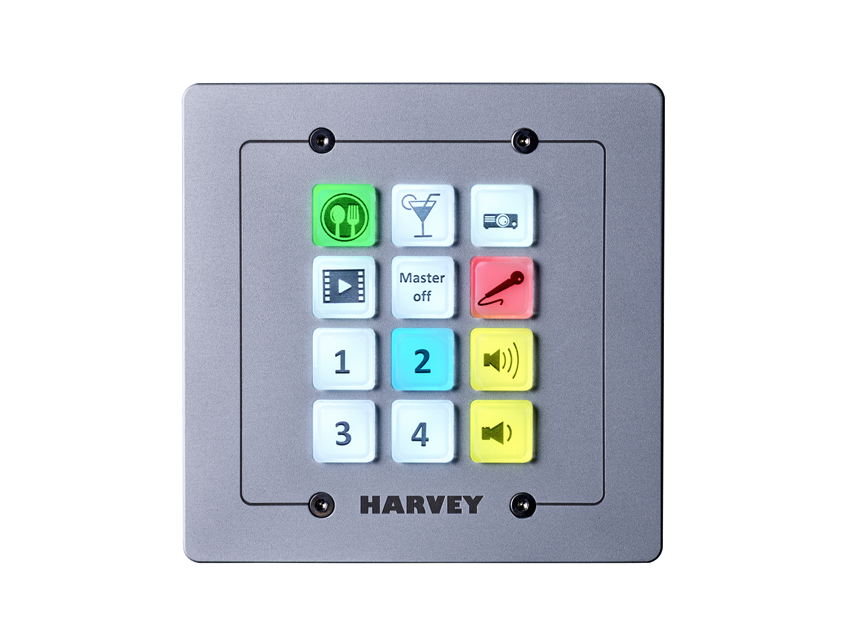

HARVEY RC12 US is a freely programmable, IP-based remote control compatible to all members of the
HARVEY family. RC12 has twelf buttons, which are freely assignable to control audio levels, DMX commands or preset calls. All LEDs are RGB type and can be programmed with an individual color scheme.
HARVEY RC12 US is completely supported by HARVEY Composer allowing the control of complex scenarios easily like the use of several remotes in parallel for a single project.

HARVEY RC12 is with a metal faceplate compatible for mounting into standard 2-gang North-American flush-mounted boxes.

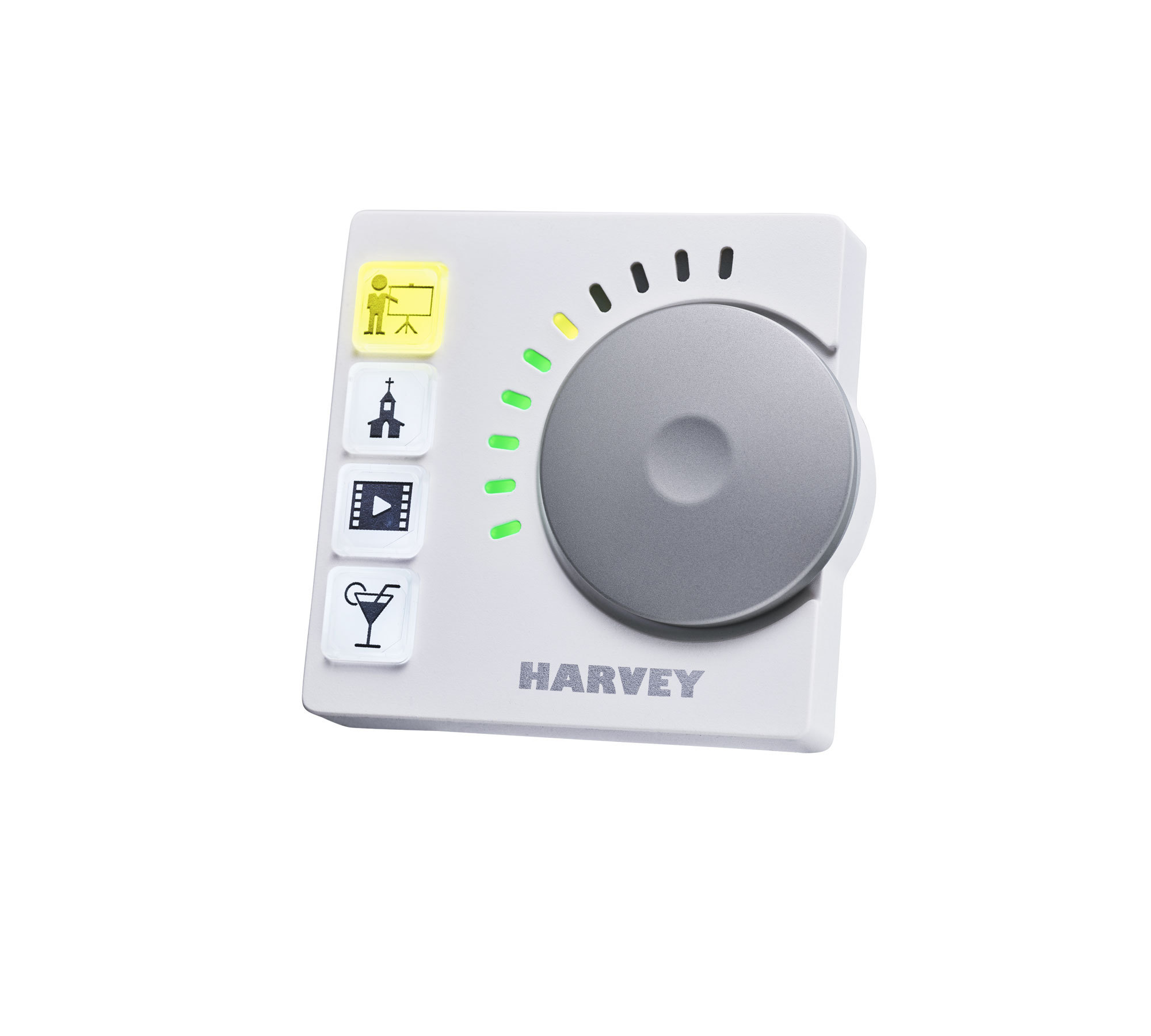

HARVEY RC4 is a programmable, Ethernet-based wall-mount remote control. RC4 is capable to control presets, audio levels or DMX-lamps. All RC4 LEDs and buttons can be individually customized in their color and brightness.

HARVEY RC4 is a freely programmable, IP-based remote control compatible to all members of the HARVEY family. RC4 has one rotary encoder and four buttons, which are freely assignable to control audio levels, DMX commands or preset calls. All LEDs are RGB type and can be programmed with an individual color scheme.
HARVEY RC4 is completely supported by HARVEY Composer allowing the control of complex scenarios easily like the use of several remotes in parallel for a single project.

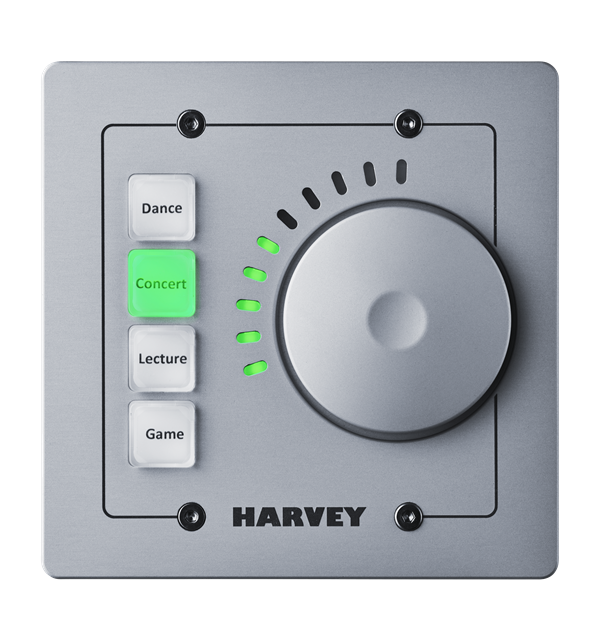

HARVEY RC4 US is with a metal faceplate compatible for mounting into standard 2-gang North-American flush-mounted boxes.

SPECIFICATION
Network:
Data Link 10/100 Mbps Ethernet/IP
RJ45 connector for CAT5 and 4-pole terminal
block with compression contacts for heavy
CAT7 S/FTP cable
External cable clamp for shield and strain relief
Power Supply:
PoE IEEE802.3af Class 3 (12.95 W)
Mounting:
Mountable into one-gang EU junction box
(60 mm diameter)
Quick two step mounting:
1) Attach cable from wall and mount wall panel with 2 screws
2) Snap and mount front part to wall panel with 1 screw

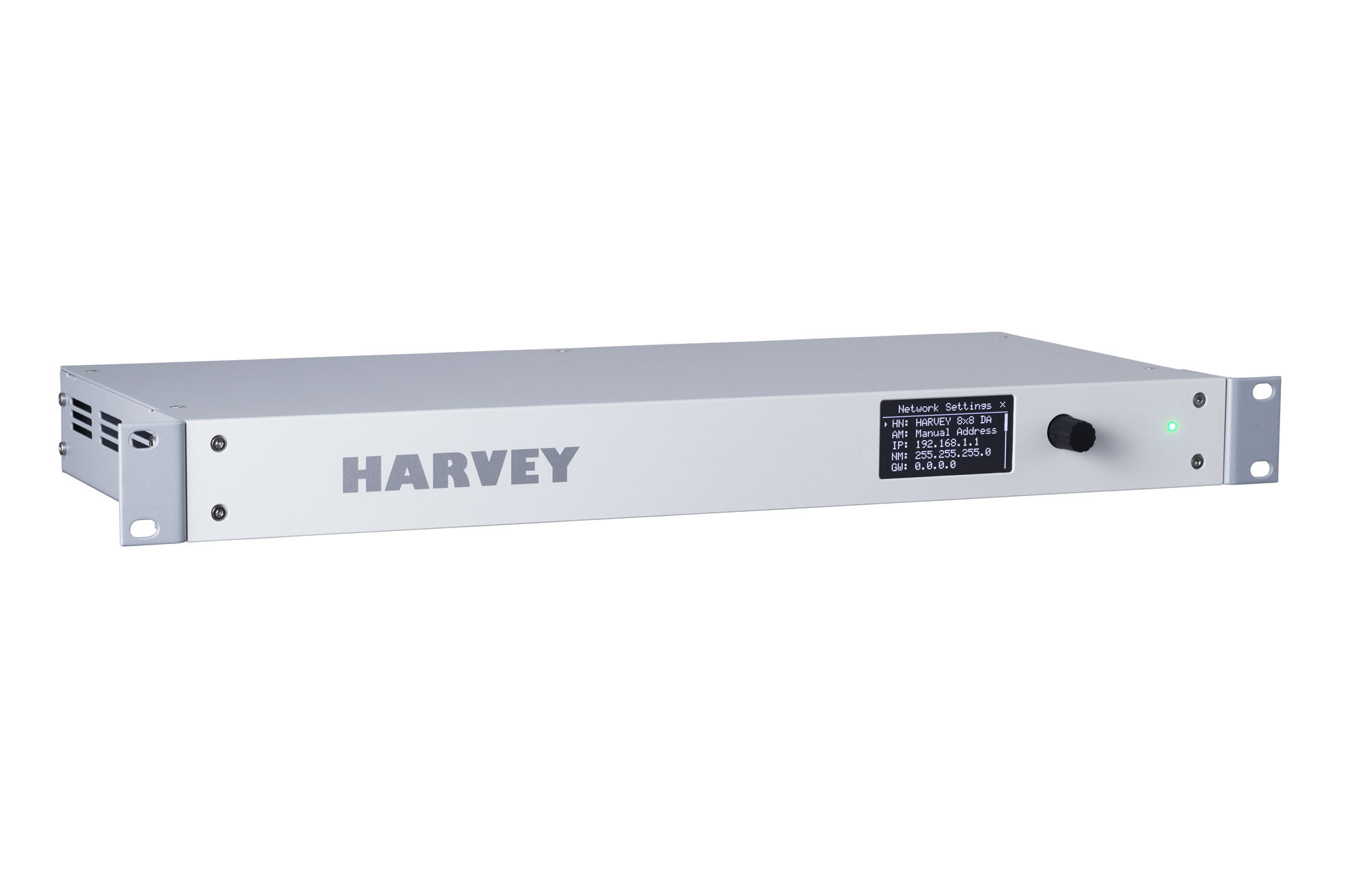

In addition to audio signal processing, lighting and media control, the HARVEY Pro allows for a flexible response to different market requirements with regard to the number of channels. The audio input and output channels can be scaled in steps of 4, allowing HARVEY Pro to cover the spectrum from small projects with an 8×8 audio matrix to special applications with e. g. 4×24 channels. An appealing wall-mounted remote control for the most important functions completes the product portfolio.


Audio Inputs:
Analog balanced mic/line inputs
24 bit Delta-Sigma high-end low latency
A/D converters
Digitally controlled analog gain and 48 V
phantom power per input
Input level (full scale):
Line: +24 dBu, +18 dBu, +15 dBu, +9 dBu switchable
Mic: down to -36 dBu in steps of 3 dB
Audio Outputs:
Analog balanced line outputs
24 bit Delta-Sigma high-end low latency
D/A converters
Digitally controlled analog gain
Output level (full scale):
+24 dBu, +18 dBu, +15 dBu, +9 dBu switchable
Analog Input to Output Performance:
Dynamic range > 110 dBA
THD+N < 0.003%
Latency < 0.75 ms
DSP Performance:
ADI SHARC ADSP-21469
with 450 MHz / 2.700 MFLOPS
Dante (optional):
64 input / 64 output channels,
2 x RJ45 redundant mode
Ethernet:
10 / 100 BaseT, RJ-45, link and activity LED
RS 485 / DMX:
Galvanically isolated, 2 x 3-pin terminal block
external 120 Ohm termination
max. 460 kbps / DMX512
RS 232:
max. 460 kbps, RTS/CTS hardware flow control
available, 1 x DSub 9-pin female
Digital Control Inputs:
4 negative logic inputs activated by connection to
GND, max. 5 V
Analog Control Inputs:
2 analog control inputs 0 - 5 V, 5 V /
GND externally available (max. 15 mA)
Digital Control Outputs:
4 logic outputs, drive capability max. 5V / 50 mA,
sink capability max. 30V / 50 mA
2 relay outputs, max. 125 VAC at 300 mA / 30 VDC
at 1000 mA
Power Supply:
95 to 250 VAC at 50 to 60 Hz, IEC C14 inlet
Dimensions:
19“ / 1 RU, 432 mm x 44 mm x 191 mm (W x H x D)
Weight:
3 kg / (6.6 lbs)
